55 Inch IR Interactive Touch Frame 5mm Multi Touch Infrared Touch Frame

Ask Lasest Price
Brand Name :	INGSCREEN
Model Number :	IS-55TFP
Certification :	CE CB FCC ROHS ISO9001
Price :	$52-$60 /Unit
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 Pcs/ per month
Delivery Time :	5 workdays

Add to Cart

Product Details
Company Profile

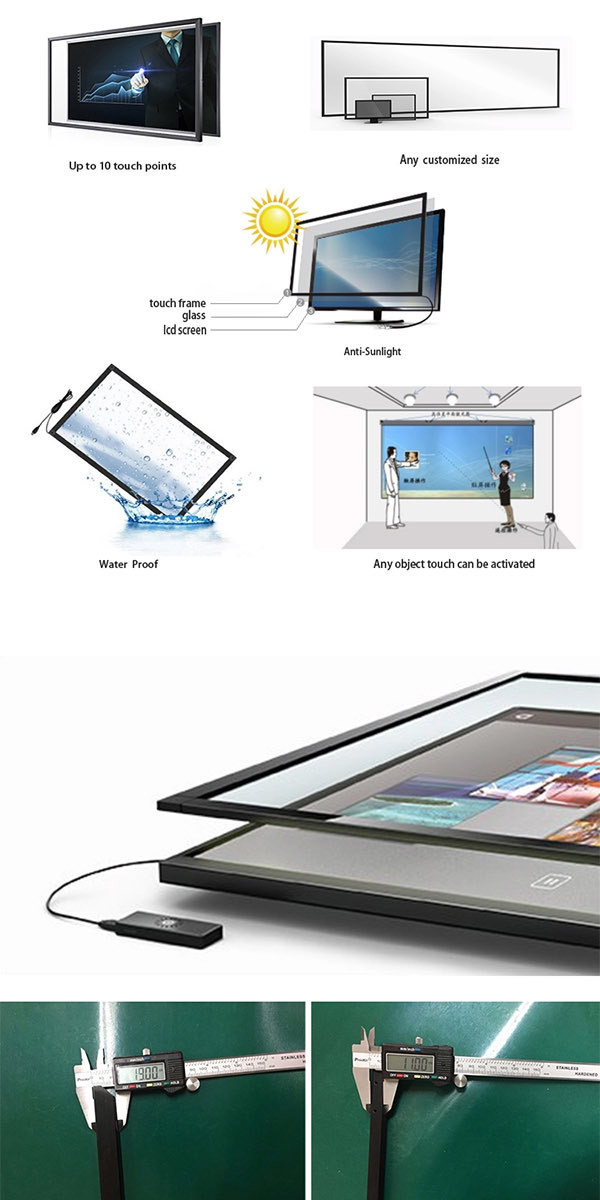

55 Inch IR Interactive Touch Frame 5mm Multi Touch Infrared Touch Frame

Multi IR Touch Screen 55 Inch 20 points Infrared Multi Touch Frame for Interactive flat panel

As an object touches the screen, it interrupts the light-beam causing a loss of light at the sensor. This loss of light is used to determine the location of the touch event, helping the sensors pick up the exact location of the touch. A major benefit of such a system is that it can detect essentially any input including a finger, gloved finger, stylus, or pen. Available in sizes up to 500"

Product Name	IR Touch Frame
Size	19" 19.5" 21.5" 24" 27" 32" 43" 49" 55" 65" 70" 75" 86" or Customize
Material	Aluminum Alloy+Glass / Plastic+Glass
Color	Black
Interpolation Resolution	32767*32767
Respond Time	≤10ms
Touch Accuracy	± 2mm (over 90% Area)
Touch Input Method	Finger,Pomiter,Styplus pen or any other Opaque objects
Output Form	Coordinate Value
Touch Durability	Unlimited
Available Object Sizes for Touch	Φ5mm
Interface	A-Type USB/M
Electrical Specification
Scan Rate	200HZ
Communication Protocol	USB2.0 Full Speed
Transmission Rate	12Mbps
Power Supply Mode	USB
Supply Voltage	DC+5V+5%
Operating Current	<200mA
Software Specification
Multi touch	Win 7 Ultimate, Win7 professional, Win 7 home premium, Android
Single Touch	Win 7, win XP, Vista, Linux, Mac, Android and WinCE
Environmental Specification
Operating Temperature	-10 〜50°C
Storage Temperature	-20 〜60°C
Humidity	Operating: 10%~85%, non-condensing. Storage: 10%~90%, non-condensing.
Firmware Upgrade	USB Upgrade: Win7, Win XP
ESD	EN 6100-4-2 2008:3 level. 4 KV contact discharge and 8 KV air discharge (The touch panel under test should be assembled with display devices.)
Features	Support 24 touch points, Detachable design, Anti-light Interference excellent, Less energy-intensive,more environment-friendly, A plug-and-play device.

55 Inch IR Interactive Touch Frame 5mm Multi Touch Infrared Touch Frame
